| Wheel Size (mm) | Hole Size (mm) |
Hole Spacing (mm) |
Plate Size (mm) |
Axle Thickness (mm) |
Wheel Diameter (mm) |
Wheel Width (mm) |
Swivel Radius (mm) |
Load Height (mm) |
Load Capacity (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 80MM | 9 X 14 | 80 X 60 | 102 X 84 | 2.5 | 80 | 25 | 32 | 108 | 80 |
| 100MM | 9 X 14 | 80 X 60 | 102 X 84 | 3.0 | 100 | 28 | 33 | 125 | 90 |
| 125MM | 9 X 14 | 80 X 60 | 102 X 84 | 3.0 | 125 | 33 | 34 | 150 | 100 |
| 160MM | 11 X 15 | 105 X 75 | 135 X 105 | 3.5 | 160 | 40 | 43 | 190 | 160 |
| 200MM | 11 X 15 | 105 X 75 | 135 X 105 | 3.5 | 200 | 50 | 47 | 235 | 180 |

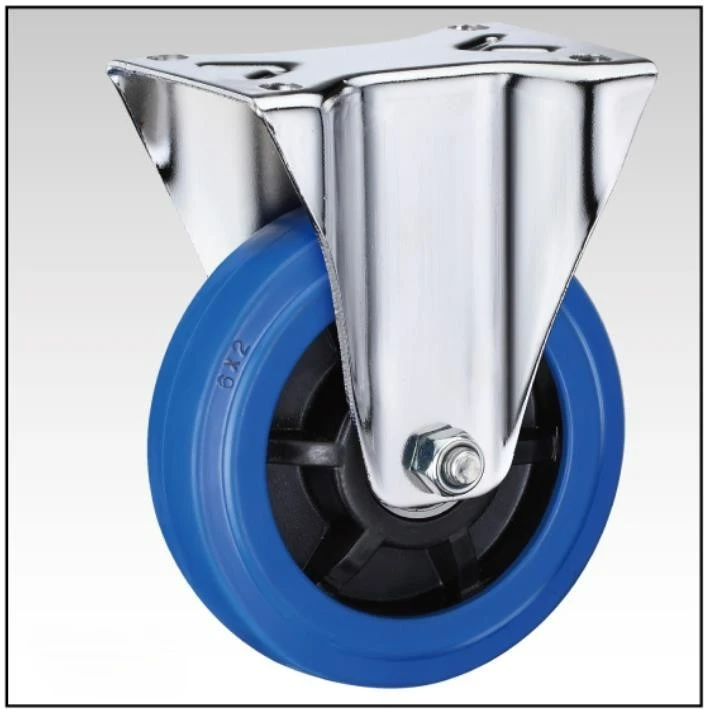

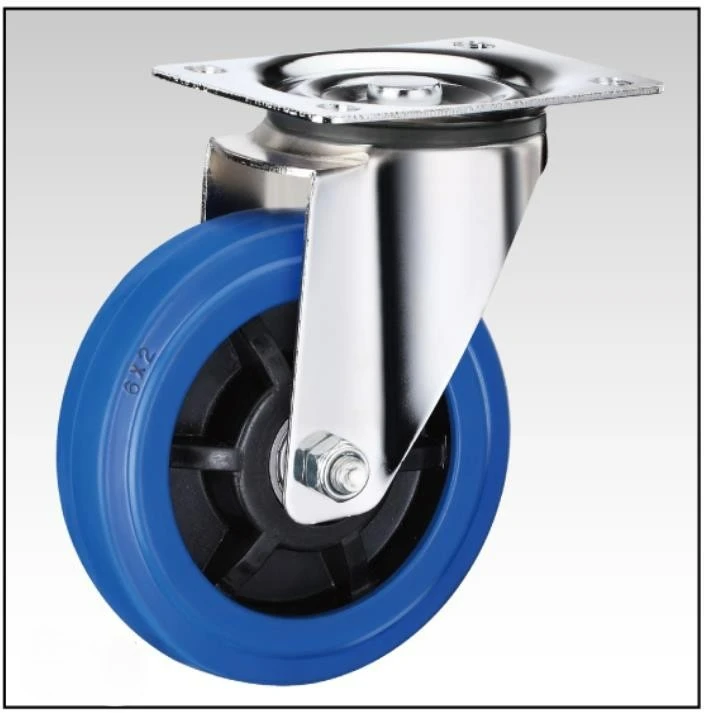

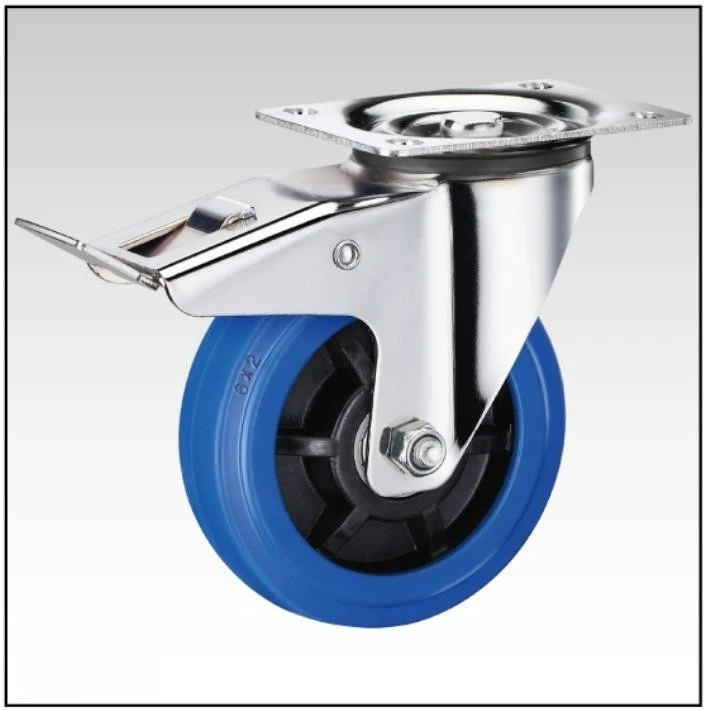

Medium Heavy Duty, Nylon Core With Blue Elastic Rubber
| Bearing | Roller Bearing |
|---|---|
| Material | Nylon-Based, Rubber-Based |
