| Wheel Size (mm) | Hole Size (mm) |
Hole Spacing (mm) |
Plate Size (mm) |
Axle Thickness (mm) |
Wheel Diameter (mm) |
Wheel Width (mm) |
Swivel Radius (mm) |
Load Height (mm) |
Load Capacity (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 75MM | 10 X 8.5 | 74.5 X 44.5 | 95 X 65 | 2.3 | 75 | 31 | 38 | 103.0 | 80 |
| 100MM | 10 X 8.5 | 74.5 X 44.5 | 95 X 65 | 2.3 | 100 | 31 | 40 | 127.5 | 100 |
| 125MM | 10 X 8.5 | 74.5 X 44.5 | 95 X 65 | 2.3 | 125 | 31 | 41 | 150.5 | 120 |

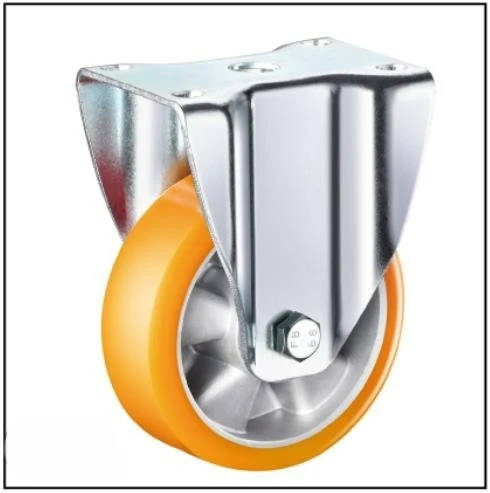

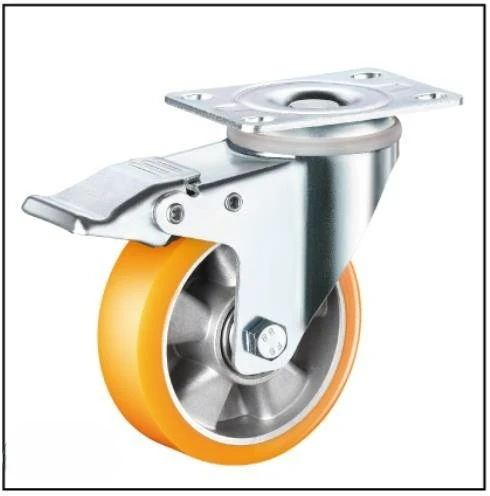

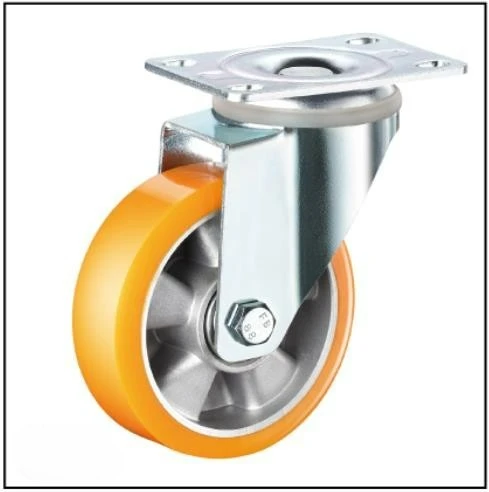

Medium Duty, Aluminum Core With Polyurethane
| Bearing | Double Ball Bearing |
|---|---|
| Material | Aluminum-Based, Polyurethane-Based |
