| Wheel Size (mm) | Hole Size (mm) |
Hole Spacing (mm) |
Plate Size (mm) |
Axle thickness (mm) |
Wheel Diameter (mm) |
Wheel Width (mm) |
Swivel radius (mm) |
Load Height (mm) |
Load Capacity (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 75 | 8.5 X 11.5 | 62 X 50 | 81 X 72 | 1.8 | 75 | 22 | 31 | 95 | 40 |
| 85 | 8 X 13.5 | 80 X 60 | 102 X 84 | 2.0 | 85 | 25 | 32 | 105 | 50 |
| 100 | 9 X 14 | 80 X 60 | 102 X 84 | 2.0/2.5 | 100 | 28 | 33 | 125 | 60 |
| 125 | 9 X 14 | 80 X 60 | 102 X 84 | 2.0/2.5 | 125 | 33 | 34 | 150 | 80 |
| 160 | 11 X 15 | 105 X 75 | 135 X 105 | 2.7 | 160 | 40 | 43 | 190 | 125 |
| 200 | 11 X 15 | 105 X 75 | 135 X 105 | 2.7 | 200 | 50 | 47 | 235 | 150 |
| 250 | 11 X 15 | 105 X 75 | 135 X 105 | 3.0 | 250 | 50 | 55 | 285 | 180 |

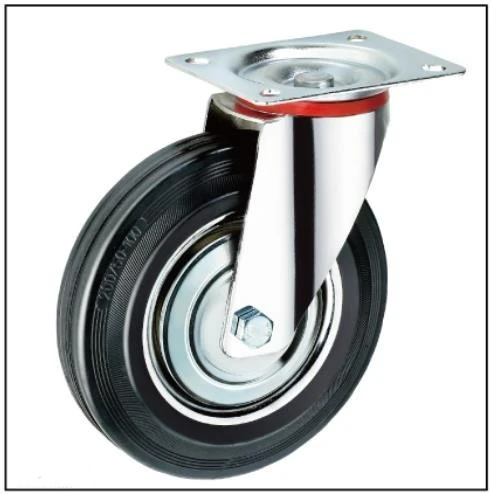

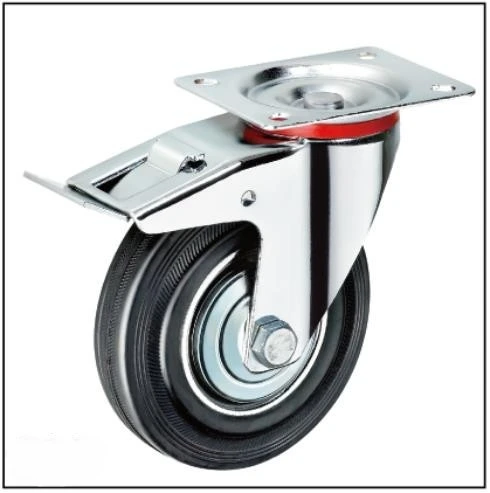

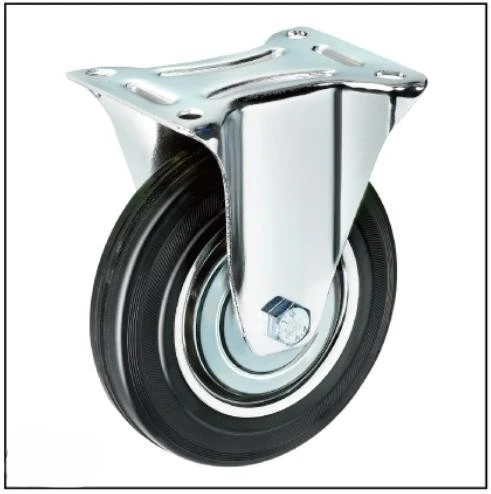

Light Duty, Black Rubber + Steel Hub
| Bearing | Roller Bearing |
|---|---|
| Material | Rubber-Based, Steel-Based |
